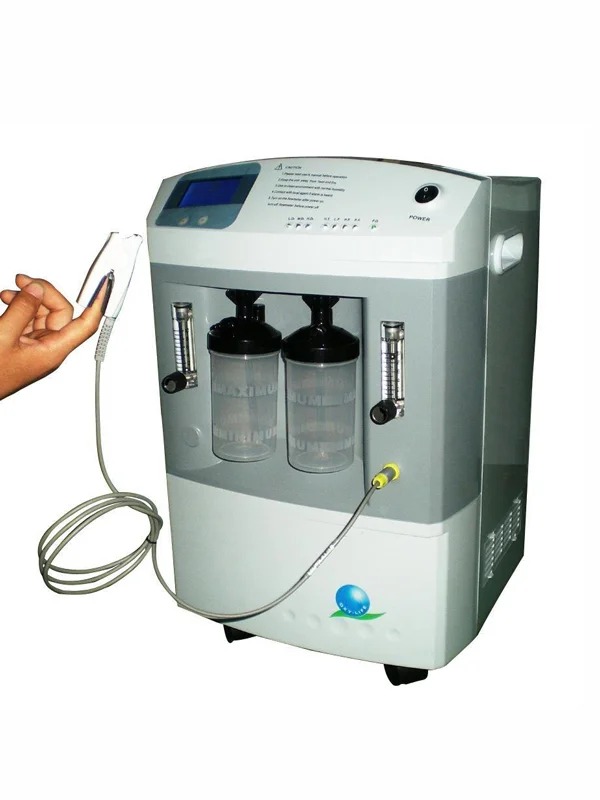

The NSL JAY-5 Oxygen Concentrator is a reliable and energy-efficient oxygen concentrator designed to provide a continuous supply of concentrated oxygen for home care, clinics, hospitals, and other healthcare settings. With an oxygen flow rate of 0–5 L/min and oxygen purity of 93% ±3%, it is suitable for supplemental oxygen therapy as prescribed by a healthcare professional.
The unit features an LCD display for monitoring operating pressure, present working time, accumulated operating time, and preset operating time. Multiple built-in alarms, including power failure, high/low pressure, temperature, and low oxygen purity alarms, provide added safety during operation.
The JAY-5 can also be configured with an optional dual-flow outlet, allowing two users to receive oxygen from one machine simultaneously.
Key Features
- Model: JAY-5
- Oxygen Flow Rate: 0–5 L/min
- Oxygen Purity: 93% ±3%
- Outlet Pressure: 0.04–0.07 MPa
- LCD Display: Operating pressure, working time, accumulated time, and preset time
- Preset Timer: 10 minutes to 40 hours
- Safety Alarms: Power failure, high/low pressure, temperature, and low purity
- Optional Dual-Flow: Supports two users simultaneously
- Power: AC 230V, 50Hz
- Power Consumption: ≤530W
- Sound Level: ≤50 dB
- Net Weight: 25 kg
- Dimensions: 365 × 375 × 600 mm
- Designed for continuous operation: 24 hours × 365 days
